Export plots & charts
Get publish ready charts in minutes
There are several ways to export charts in Graphext. Almost every chart you can see throughout the application can be exported.
Saving charts from Plot

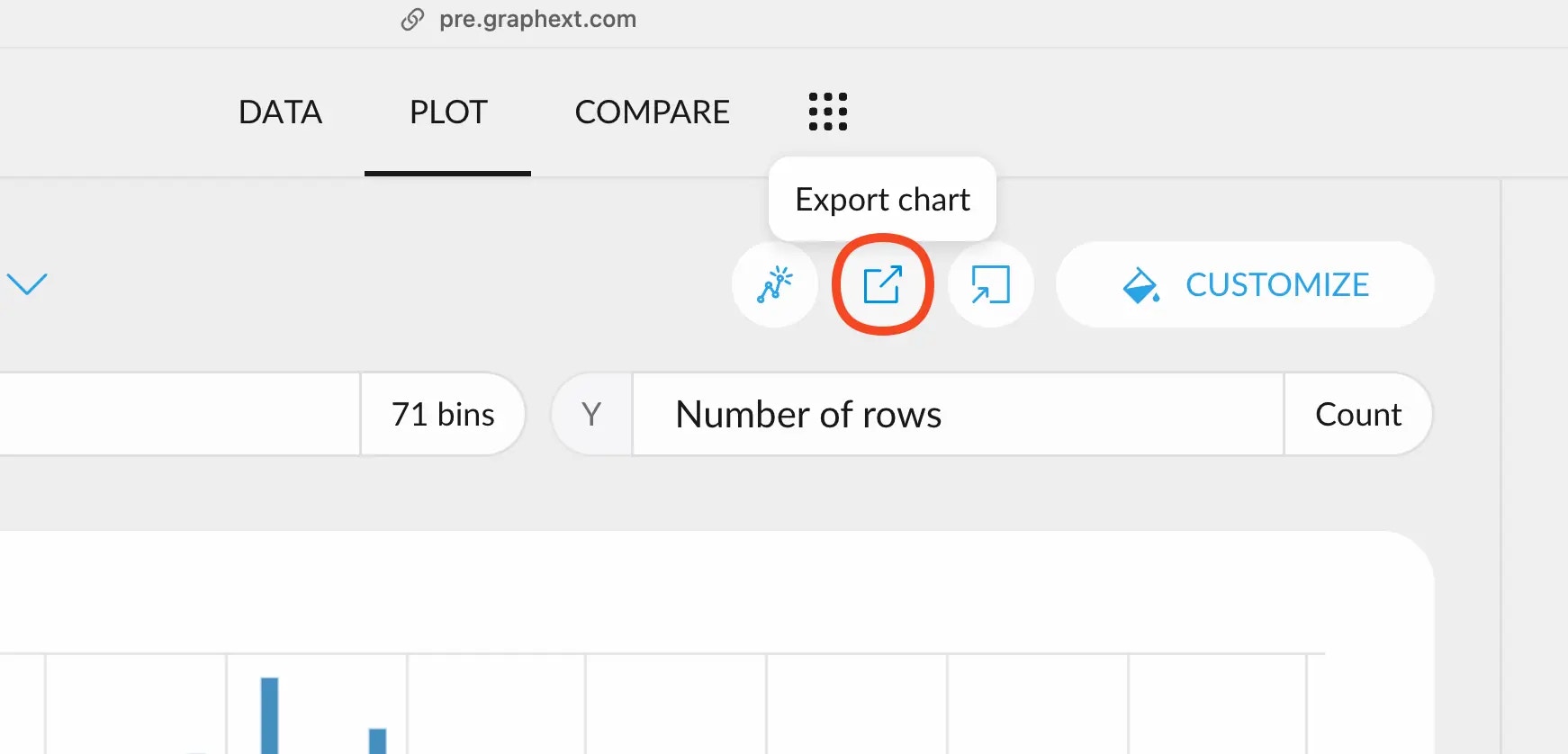

After you’ve created your plot, you can save it to your computer right from the plot menu. Simply click on the “Export Chart” button at the top and continue.

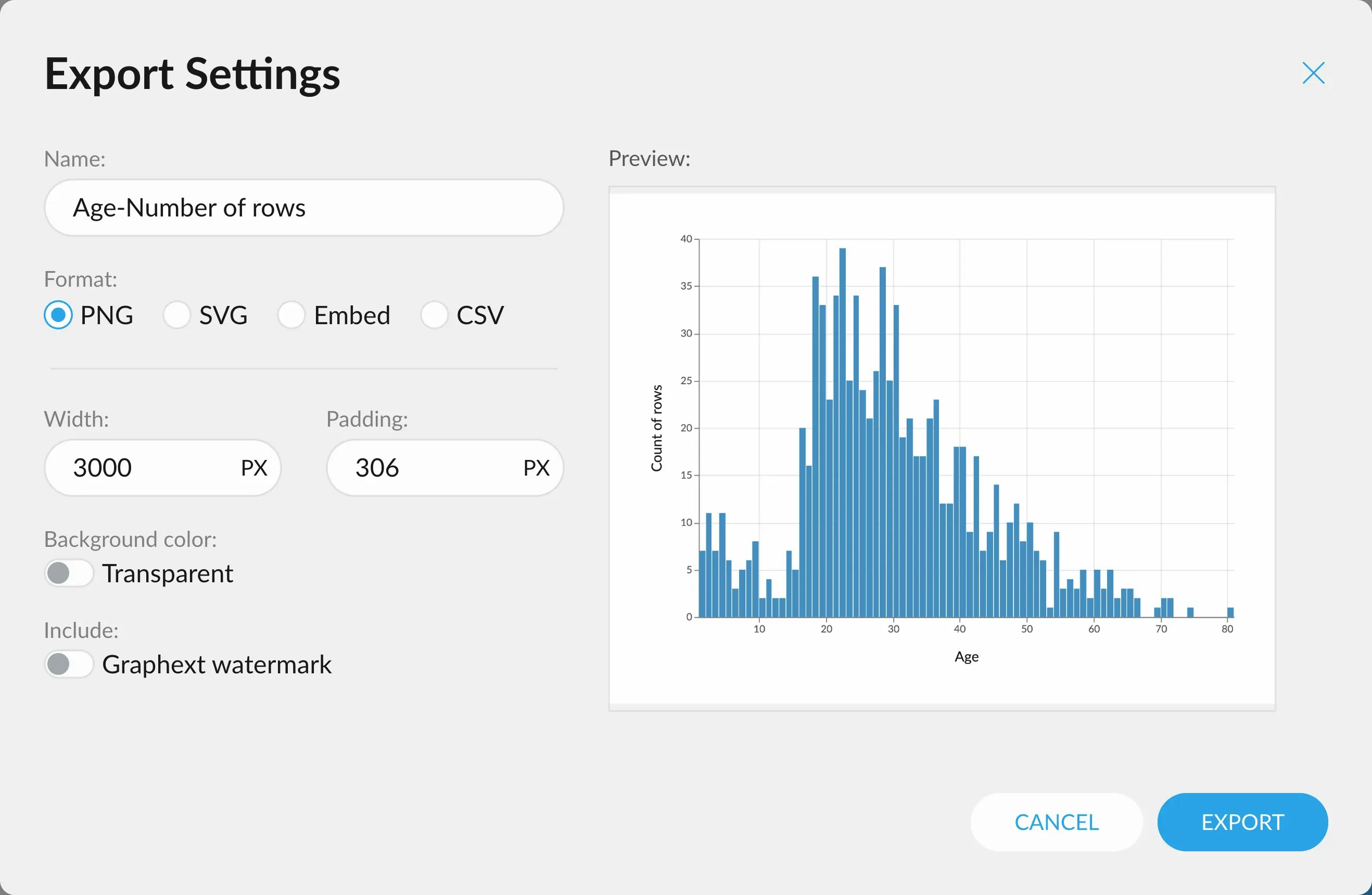

This will present a menu from which you can select the format, adjust the size of the final chart, toggle transparency (if supported) and including our watermark in the final image.
Saving charts from the interface
In case it is convenient, all the little charts you can see to the sides in Data and Plot can also be exported!
This will bring you to the same menu previously mentioned.

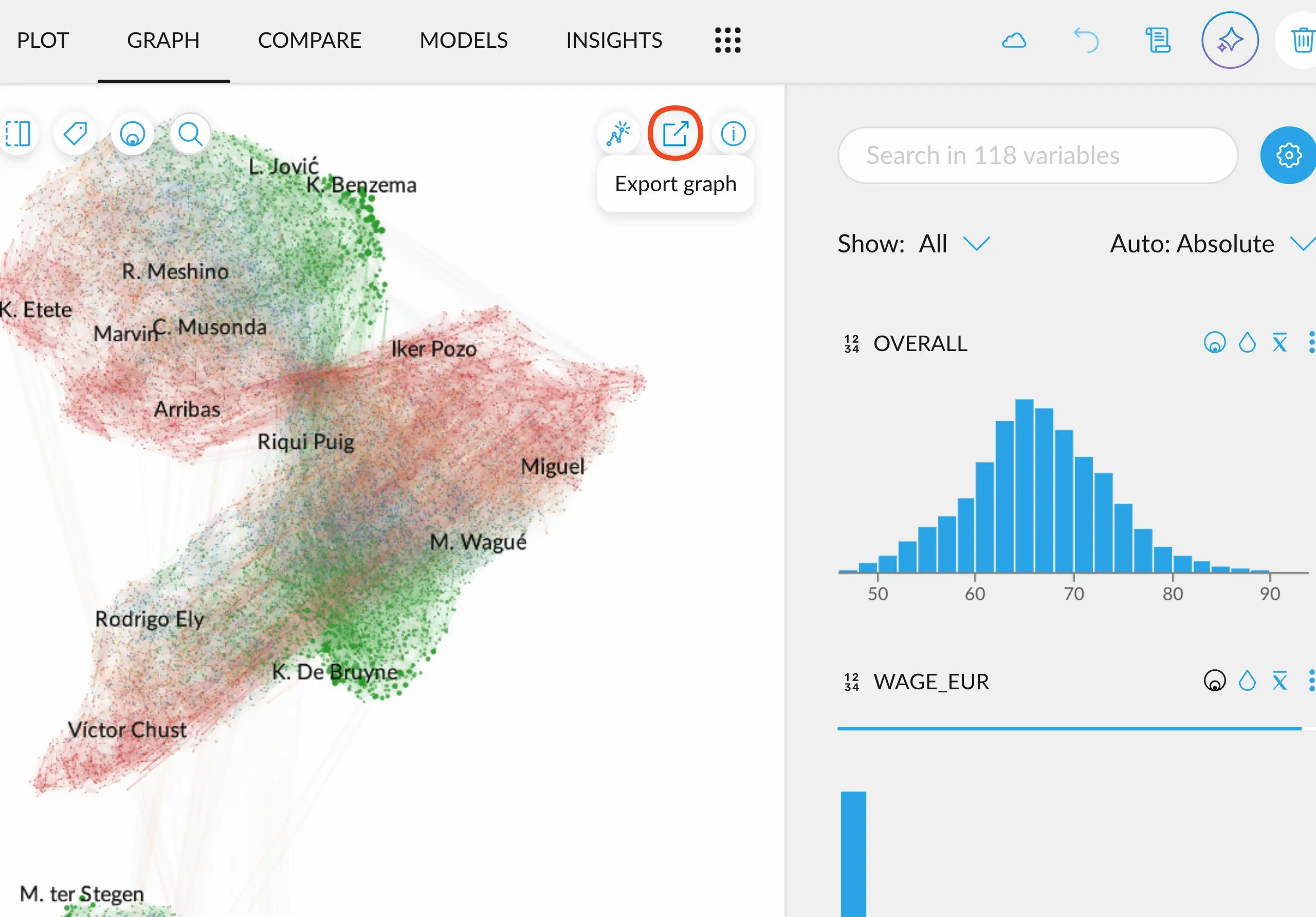

Export the Graph
Additionally, you can also export the Graph view just like any other visualization in Graphext. Go to the Graph tab after creating a cluster of your data and hit the “Export graph” button.
This will bring you to the same menu previously mentioned.

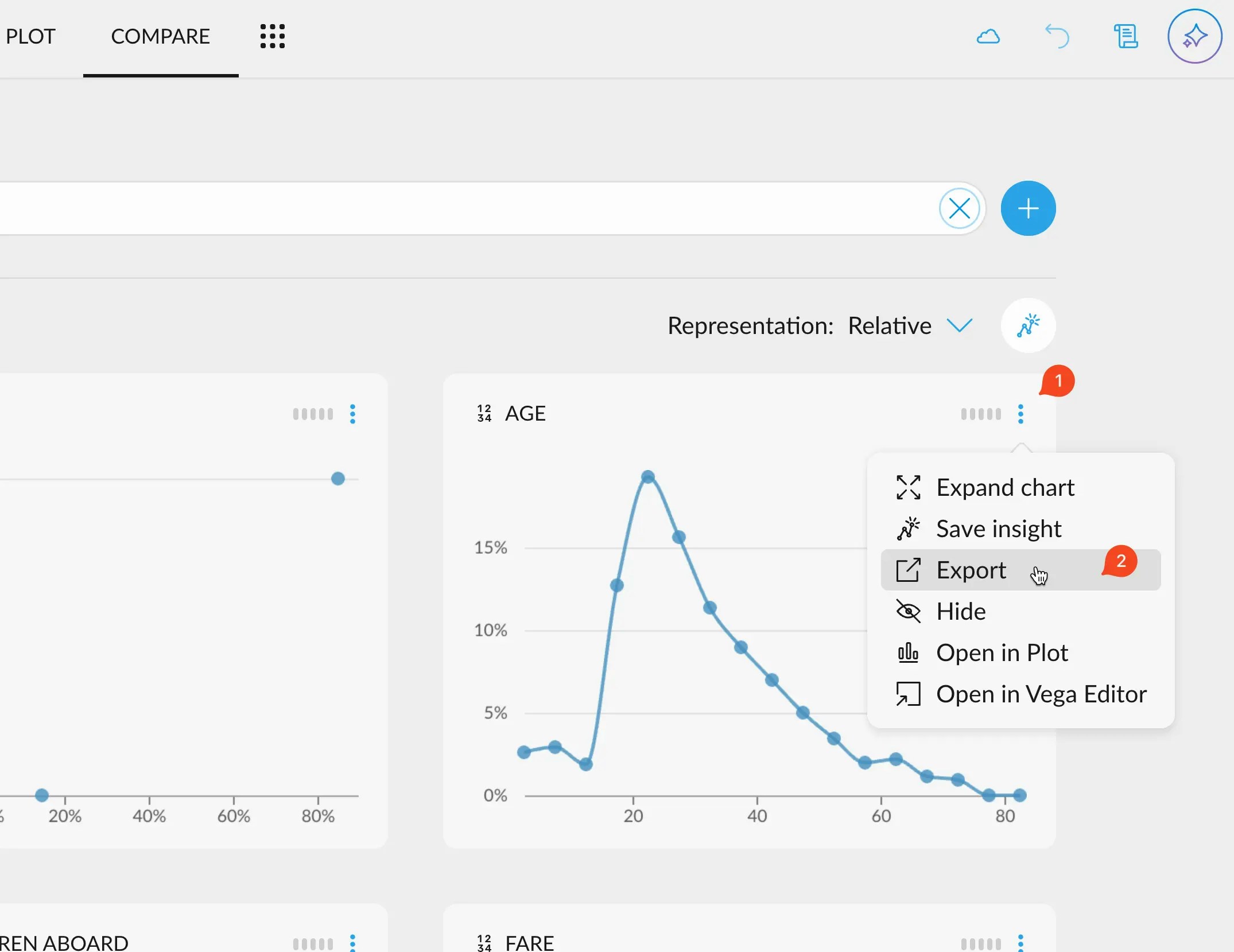

Saving charts from Compare
In the same fashion as everywhere else, you can export any chart you find in the Compare tab.
This will bring you to the same menu previously mentioned, albeit a bit more limited.

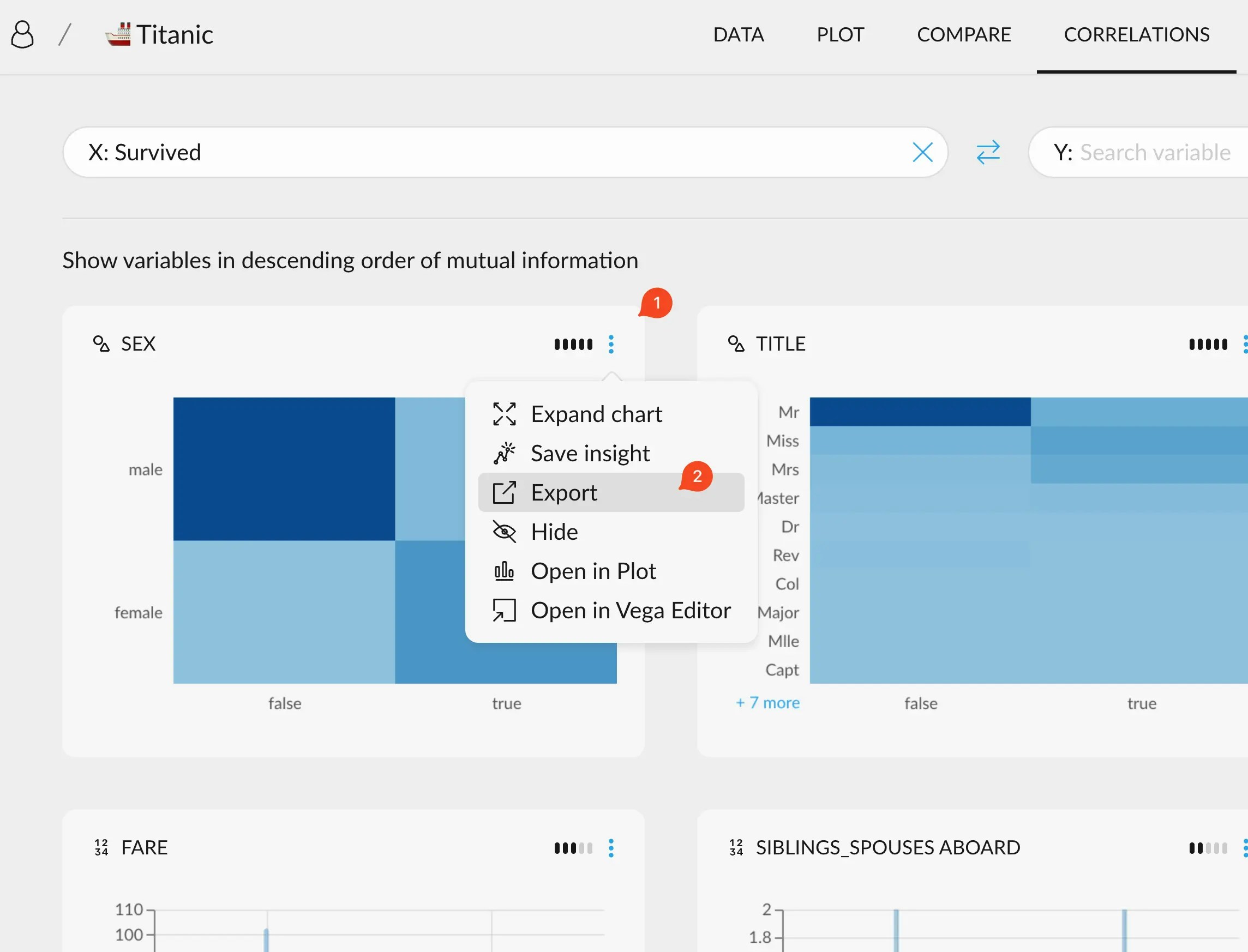

Saving charts from Correlations
In the same fashion as everywhere else, you can export any chart you find in the Correlations tab.
This will bring you to the same menu previously mentioned, albeit a bit more limited.
